This is a complete Wi-Fi MCU module which is designed for embedded wireless solution and a cost-effective, low power capabilities high performance MCU in M2M applications. It includes standards-based wired and wireless technologies to enable IP infrastructures for smart grid, smart home, security, building automation, toys, robots, remote health and wellness monitoring and other M2M applications.
The module integrates ARM CortexTM-M3 MCU, clock, Wi-Fi and front end into a smallest form factor LGA package. It is based on Broadcom IEEE802.11 b/g/n antenna diversity single-stream Broadcom align technology. Thus, it can be used to enable wireless connectivity to the simplest existing sensor products with minimal engineering effort.
The solution is provided as a module to reduce development time, lower manufacturing costs, save board space, ease certification, and minimize RF expertise required. Additionally it is provided as a complete platform solution including software drivers, sample applications, API guide, user documentation and a world-class support community.
GBS 535 Sip Module
| MCU | STM32 ARM 32-bit Cortex™-M3 Frequency up to 120 MHz |
| Memory capacity | 1 Mbytes of Flash 128 + 4 Kbytes of SRAM 512 bytes of OTP memory |
| Diverse serial interface | SPI, USART |
| Sensor application support | ADC, 12C, 12S, GPIO, CAN bus, 8-bit parallel camera interface Timer, USB |
| Debug interface support | JTAG |
| On-chip functionality single-chip | MAC/BB/RF |
| Frequency Band | 2.4 GHz |
| Network Standard | 802.11b, 802.11g, 802.11n (single stream) |
| Modulation modes | CCK and OFDM with BPSK, QPSK, 16 QAM, 64 QAM |
| Hardware Encryption | WEP, WPA/WPA2 |
| Support Date Rates | IEEE 802.11b 1 -11 Mbps IEEE 802.11g 6 -54 Mbps IEEE 802.11n (2.4 GHz) 7.2 – 72.2 Mbps |
| Advanced 1x1 802.11n features | Full/Half Guard Interval Frame Aggregation Space Time Block coding (STBC) Low Density Parity Check (LDPC) Encoding |
| Two antenna configurations | Support antenna diversity |
| Operating Temperature | -40°C to 85°C |
| MSL level 3 | |
| Certification | FCC and CE compliant |

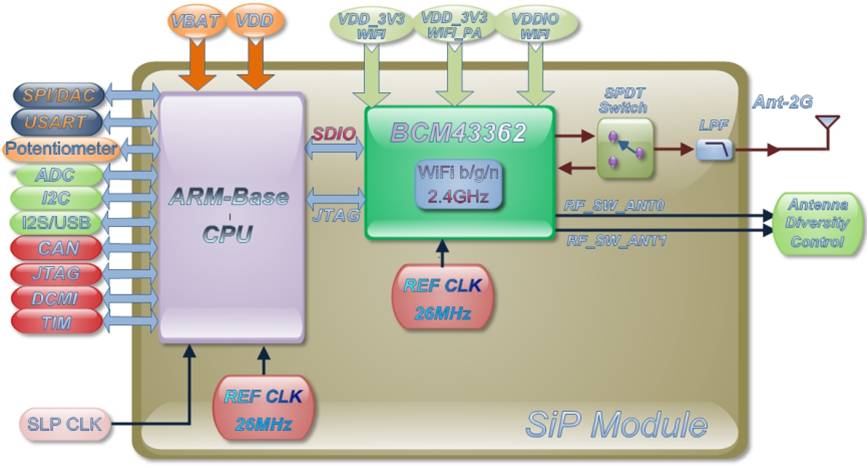

Block Diagram:
